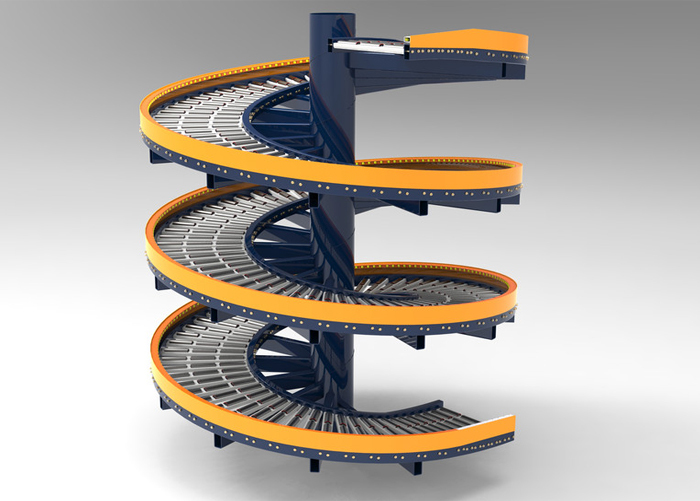

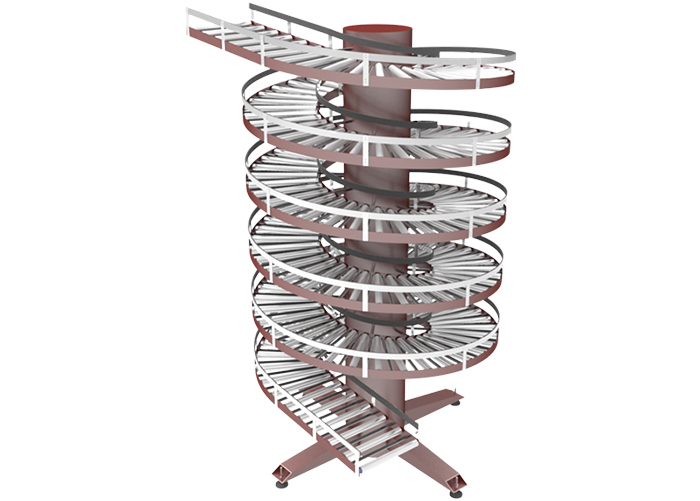

Industrial Conveyor

• Belt Conveyor
• Other, No, roller conveyor system

• Features
• Low maintenance, no power needed, easy installation, smooth conveying

• Load Capacity
• Up to 50 kg per meter (customizable as per requirement)

• Material
• Mild steel / Stainless steel (custom options available)

• Pneumatic Conveyor
• Other, No

• Power Source
• Not applicable (gravity-driven)

• Resistant Feature
• Other, Corrosion resistant, durable powder-coated finish

• Roller Conveyor
• Other, Yes, high-quality steel or stainless steel rollers

• Speed
• Depends on product weight and gravity pitch, typically 0.2-0.5 m/s

• Structure
• Other, Spiral frame with multi-level supports

• Surface Finish
• Powder coated / painted / galvanized as per requirement

• Thickness
• Frame thickness 2-4 mm (rollers 1-2 mm wall)

• Type
• Other, Gravity Roller Spiral Conveyor

• Usage & Applications
• Warehousing, packaging, material handling, loading/unloading between levels

• Vertical Conveyor
• Other, Yes, spiral configuration enables vertical transport

• Voltage
• Not required (gravity-powered)

• Belt Conveyor
• Other, Yes, HQ-multiply PVC belt

• Belt Type
• HQ-multiply PVC belt

• Features
• Joystick control, emergency stop, pop-out rollers, anti-collision strip, dust protection, double-bearing trolleys

• Load Capacity
• 50 kg/m

• Material
• Steel alloy frame, PVC belt

• Power
• Maximum 3 kW / 16 A

• Power Source
• Electric

• Resistant Feature
• Other, Fully covered moving parts, rubber covers, brushes

• Roller Conveyor
• Other, Not integrated

• Speed
• Variable belt speed (optional)

• Structure
• Other, Micro steel alloy frame, fully guarded underside

• Surface Finish
• Standard colour RAL 3020, other RAL colours available

• Type
• Other, Telescopic Boom Conveyor

• Usage & Applications
• Truck loading/unloading, package handling

• Voltage
• 3 400 V AC, 50 Hz, N, PE

• Belt Conveyor
• Other, No

• Features
• Low maintenance, Easy installation, Flexible configuration

• Load Capacity
• Up to 1000 kg per meter (customizable)

• Material
• Mild steel / Stainless steel rollers and frame

• Pneumatic Conveyor
• Other, No

• Power
• Not required (gravity operated)

• Power Source
• Not required (manual/gravity movement)

• Resistant Feature
• Other, Corrosion resistant, Wear resistant

• Roller Conveyor
• Other, Yes

• Speed
• Depends on load and gradient (gravity controlled)

• Structure
• Other, Modular frame with curved and straight sections

• Surface Finish
• Polished / Powder coated

• Thickness
• Frame: 2-5 mm, Rollers: 1.5-3 mm (varies by model)

• Type
• Other, Gravity Roller Conveyor

• Usage & Applications
• Material handling in warehouses, factories, packaging, assembly lines

• Vertical Conveyor
• Other, No

• Voltage
• Not applicable (gravity operated)

• Belt Conveyor
• Other, Integrated with infeed/outfeed systems

• Belt Type
• Modular belt/ PU belt

• Features
• Continuous movement, Gentle handling, Space-saving vertical design

• Load Capacity
• Customizable up to 2000 kg/hr depending on design

• Material
• Mild Steel/ Stainless Steel

• Pneumatic Conveyor
• Other, No

• Power
• 1.5 kW - 5.5 kW depending on model

• Power Source
• Electric

• Resistant Feature
• Other, Corrosion-resistant, Powder-coated Surface

• Roller Conveyor
• Other, Optional integration

• Speed
• Variable, typically 0.3 - 1.2 m/s

• Structure
• Other, Modular Steel Frame

• Surface Finish
• Powder-coated/Polished

• Thickness
• Frame thickness 3 to 8 mm

• Type
• Other, Continuous Vertical Conveyor

• Usage & Applications
• Box, Carton & Package Handling in warehouses, production, distribution centers

• Vertical Conveyor
• Other, Yes

• Voltage
• 220/380V, 50Hz / 60Hz (as per requirement)
